Application:

To be used for main power supply such as in low voltage distribution power networks，，，，，，，， indoor and outdoor areas. It can be installed in ducts, in dry or wet locations, recommended for direct burial where require higher electrical and mechanical protection.

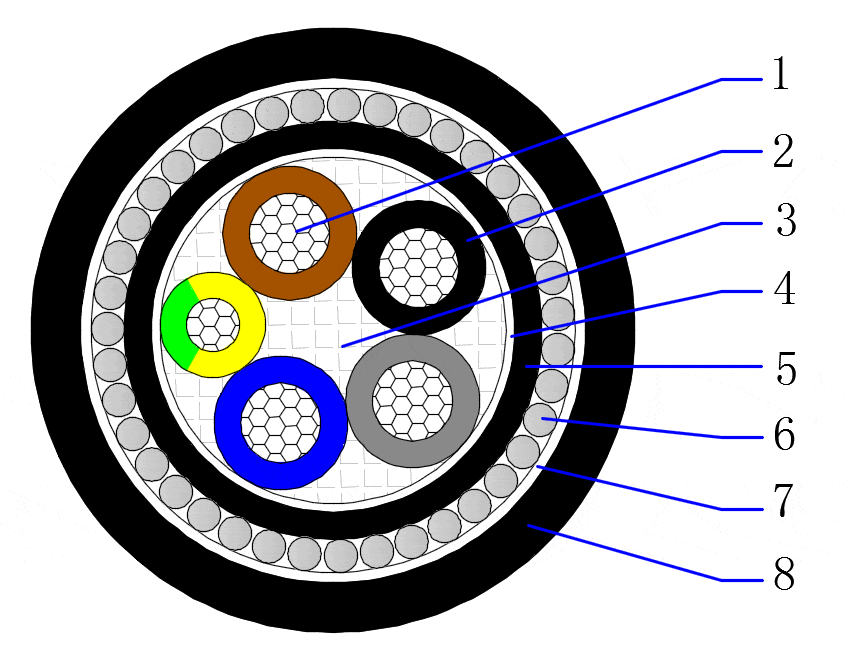

Construction:
1.    Conductor - Class 2 stranded (compacted) aluminum
2.    Insulation - Cross linked polyethylene (XLPE)
3.    Filler - Non-hygroscopic material
4.    Binder tape - Non-hygroscopic material tape
5.    Inner sheath - Polyvinyl chloride compound (PVC)
6.    Armor - Galvanized steel wires
7.    Binder tape - Non-hygroscopic material tape
8.    Outer sheath - Polyvinyl chloride compound (PVC)

Cross Section：

2C10~2C400mm2

3C10~3C400mm2

4C10~4C400mm2

5C10~5C400mm2

2C+E16~2C+E400mm2

3C+E16~3C+E400mm2

4C+E16~4C+E400mm2

Temperature characteristics:

Conductor operating temperature: -15℃~90℃

Min. temperatrue laying condition: 0℃

Conductor emergency operating temperature: 105℃

Conductor short-circuit operating temperature (5s): 250℃

Electrical Characteristics:

Rated voltage: 0.6/1 (1.2) kV

High voltage test: 3.5kV / 5min

Color:

Insulation: According to customer requirements

Outer sheath: Black or according to customer requirements

Standard:

Cable design: IEC 60502-1 or AS/ZNS 5000.1

Conductor: IEC 60228 or AS/ZNS 1125
